PPGL Roofing Sheet

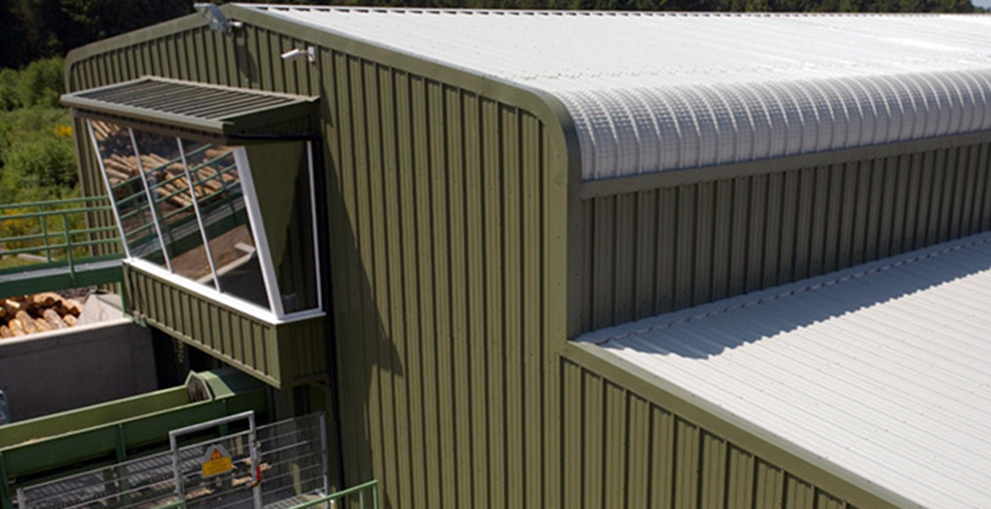

"SARDAR" PPGL corrugated roofing sheets are an excellent solution for Shed Roofs, Covered Outdoor Areas, Carports, Log Store Roofs and much more.

"SARDAR" sheets are manufactured to provide a rigid solution to span between purlins and provide excellent waterproofing. These corrugated roofing sheet kits include the fixings you will require for most applications. However, you can also add more fixings to match for more exposed areas, or as required.

"SARDAR" roof sheets are easy to install on to standard timber purlins. The fixings come with screws, and a colour-matching washer and cap secure and fast installation.

  • Anti-capillary groove ensures leak-proof roof.
  • Minimum yield strength of 550 Mpa ensures required strength for roofing application.
  • Accurate thickness, width & length helps to give the perfect fit for any roof.
  • Wider valley ensures higher water discharge in case of heavy rains.

SUPERIOR QUALITY STEEL

Colour Coated Al-Zinc + Magnesium alloy coated steel is manufactured using high quality hot metal made of most superior and environmental friendly technology. lt offers several grades including high tensile steel with a yield strength of 550 mpa to meet the need of various applications.

SUPERIOR PAINT TECHNOLOGY

Colour Coated Al-Zinc + Magnesium alloy steel is available in a variety of paint systems like Regular Modified Polyester (RMP), Silicon Modified Polyester (SMP), Super Durable Polyester (SDP), Poly Vinyldened Fluoride (PVDF) etc. The base metal has the first layer of primer coating on both top & bottom surface for superior adhesion with the paint system. The final paint coating provides additional protection to withstand harsh weather conditions and other factors affecting longer life. The superior coating technology resists cracking and peeling even during heavy forming operations.

EXCELLENT CORROSION PROTECTION

Colour Coated is available in a wide Al-Zinc + Magnesium alloy coated range (70 to 200 gsm) to provide excellent corrosion protection in various climatic conditions.

MATERIAL SPECIFICATION

PPGL
Pre-Printed Alu-Zinc + Magnesium Steel Sheets
(Galvalume)
Alu - Zinc + Magnesium Coating AZ 150 (Optimal AZ70) GSM
Primer Service Coat 5 microns epoxy / PU on both sides
Paint coating Regular Modified Polyester(RMP)
(Optional -Silicon Modified Polyester & PVF 2)
Paint thickness
(top)
20-25 microns
Paint thickness (bottom) 05-07 microns
Surface paint reflection Semi Gloss / Matt finish
Conforms to ASTM A792, A755, JIS G3321, G3322, AS1397
Yield Strength 300 - 550 Mpa

TRADE PROFILE

MATERIAL SPECIFICATION

LOAD CHART
